Fox Factory

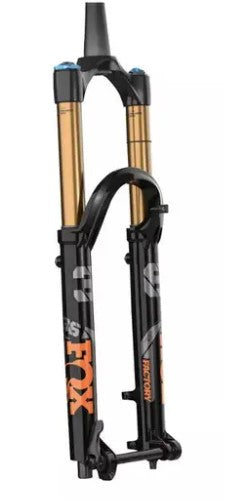

Fox Fork 36 29 F160 G2 Fork 15Qx110 44

Fox Fork 36 29 F160 G2 Fork 15Qx110 44

Regular price $1,849.99 AUD
Regular price Sale price $1,849.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.


  • Updated Crown Design - Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while our engineering maintains stiffness and drops weight
  • GRIP2 Damper - Unparalleled ride quality and ultra-precise adjustability. Allows for external fine-tuning of suspension performance thanks to our patented Variable Valve Control (VVC) technology
  • Lower Leg Channels - Dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping. Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel
  • Bleeders - Lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and responsiveness
  • Floating Axles - They might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs
  • Lower Leg Arch - All-new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding.
  • Optional - Fox 36/38 Mud Guard with sturdy 4-point direct-mount attachment (sold separately)
  • Wheel Size: 29"
  • Travel: 160mm
  • Air Spring: FLOAT EVOL
  • Damper: FIT GRIP2
  • Axle/Spacing: 15x110mm "Boost" Thru Axle
  • Disc Mount: 74mm Post Mount (180mm direct mount)
  • Upper Tube Finish: Kashima Coat
  • Adjustments: Low Speed Compression Damping, High Speed Compression Damping, Low Speed Rebound Damping, High Speed Rebound Damping, and adjustable air spring pressure
  • Steerer Tube Length: 263mm
  • Axle-to-Crown: 571mm (160mm travel)
  • Rake: 44mm
  • Steerer: 1.5" Tapered
  • Maximum Tire Width: Tire size is limited to 29 x 2.6", any 29" tire greater than 2.4" must be checked according to Fox Tech User Specifications
  • Weight: 1,942g.
  • Color: Shiny Black
