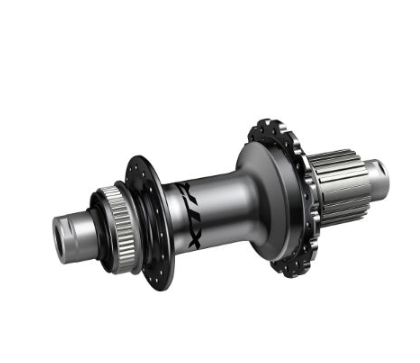

FH-M9111-B REAR FREEHUB XTR 32H CENTERLOCK 148x12mm

Build your fastest XTR wheel with the hub that tops Shimano's mountain bike range. The FH-M9111-B delivers Boost-spacing rigidity, Micro Spline compatibility for a 10-tooth sprocket, and XTR's signature precision engineering — all in a 231g package built to handle the demands of XC racing, marathon, and enduro.

Highlights

• Micro Spline freehub body — supports 12-speed Shimano XTR cassettes with 10-tooth small sprocket
• 12x148mm Boost thru-axle spacing for maximum rear-end stiffness and tyre clearance
• Centerlock disc brake interface — fast rotor swaps, clean integration
• 32-hole lacing for reliable build strength across trail and race use
• Cup-and-cone bearings with high-quality labyrinth and contact seals for smooth, durable performance
• Anodised aluminium hub shell and axle — stiff, light, and corrosion resistant
• Quick engagement: maximum 7.0° engagement angle for responsive power transfer
• Weight: 231g

Micro Spline & Freehub Technology

The FH-M9111-B uses Shimano's Micro Spline freehub interface, co-developed with DT Swiss for Shimano's 12-speed XTR drivetrain. The smaller-diameter spline carrier enables a true 10-tooth sprocket — tightening your gear range without sacrificing chainline geometry. The freehub's 22-tooth ratchet ring delivers crisp, predictable engagement every time you put down power.

Boost Thru-Axle Construction

At 148mm over-locknut distance with a 12mm thru-axle, the FH-M9111-B is built around the Boost standard that has become the benchmark for modern MTB. The wider flange stance improves lateral spoke bracing angle, resulting in a stiffer, more responsive wheel build. Note: thru-axle is sold separately and is not included.

Bearings & Sealing

Shimano's cup-and-cone bearing system is used throughout the XTR hub family for its adjustability and long service life. Combined with high-quality labyrinth and contact seals, the hub sheds mud and water effectively without adding significant rolling resistance — keeping the hub performing between services in all conditions.

Compatibility & Fit

• Freehub: Micro Spline (Shimano 12-speed MTB cassettes, 10T minimum sprocket)
• Axle: 12mm E-Thru, 148mm O.L.D. (Boost) — axle sold separately
• Brake interface: Centerlock (lock ring not included)
• Spoke holes: 32H
• Lacing: Cross pattern recommended; consult your wheel builder for spoke lengths
• Compatible groupsets: Shimano XTR M9100 12-speed, and other Micro Spline-compatible 12-speed cassettes
• Not compatible with HG (standard Hyperglide) or XD Driver cassettes
