Enduro Bearing

398 LLU MAX-E ABEC-3 RADIAL SUSP BRNG - 8 X 19 X 10/11MM

398 LLU MAX-E ABEC-3 RADIAL SUSP BRNG - 8 X 19 X 10/11MM

Regular price $18.95 AUD
Regular price Sale price $18.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour

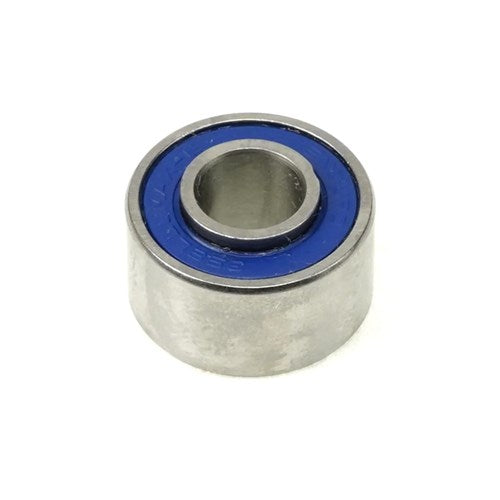

398 LLU MAX-E - MAX-Design, Double Row, Extended-Race, ABEC-3, radial suspension bearing - 8 x 19 x 10/11mm

Enduro bearings pioneered MAX type bearings 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX bearings provide 35-40% more load capacity than standard radial bearings by employing a special design where the maximum number of balls (full-complement) are inserted into the bearing, via a custom ground slot in the races. The race grooves are also deeper on these bearings to provide increased lateral support to counteract the twisting and multi-directional forces associated with mountain bike pivots. This MAX-type, double-Row, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area and the extended inner race eliminates the need for extra spacers to connect suspension linkages.

This bearing is most commonly used as a suspension pivot bearing by Yeti.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
